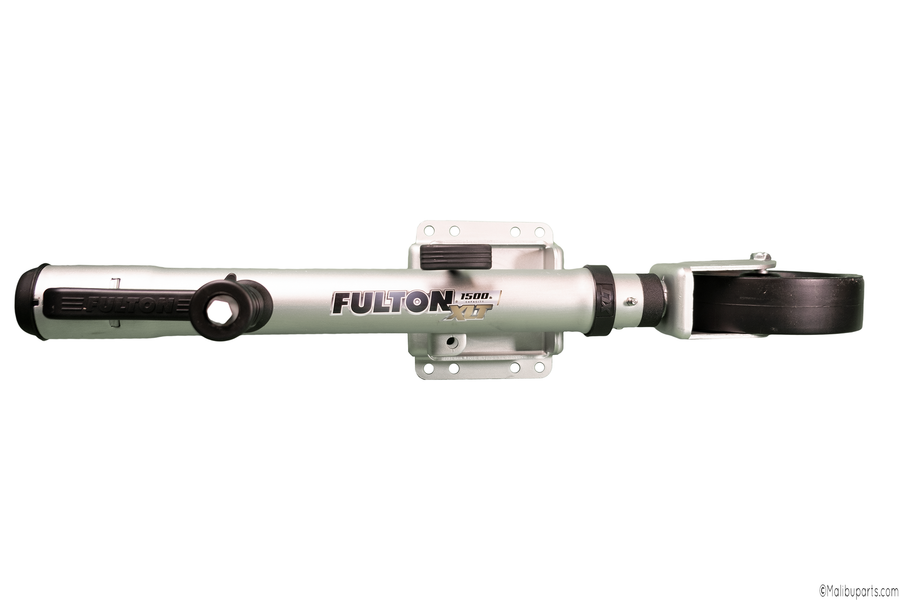

General Specifications:

• Model Number: 141133 (Sharkskin finish)

• Lift Capacity: 1,500 lbs

• Travel Distance: 12 inches

• Mounting Type: Bolt-On Side Mount; fits trailer tongues up to 3" x 5"

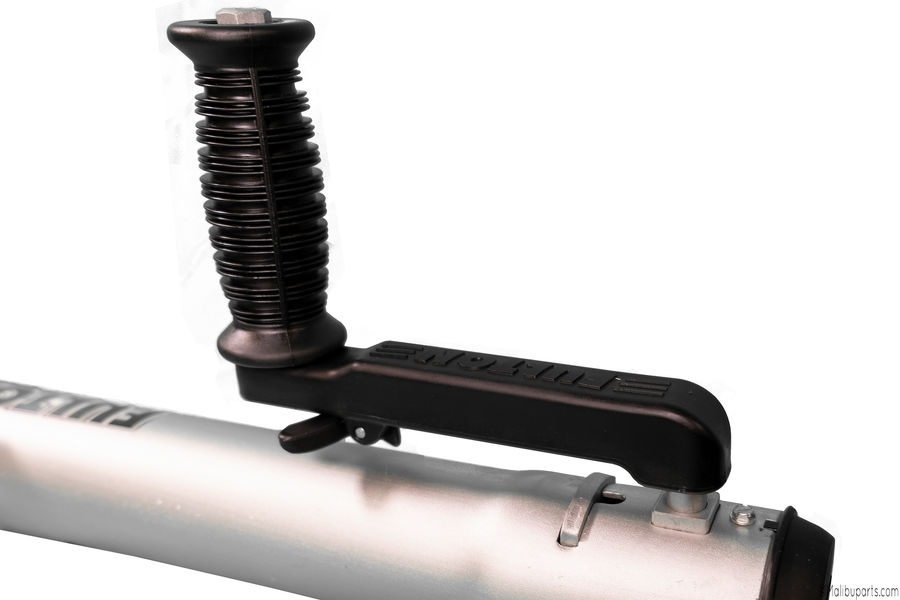

• Handle Style: Sidewind crank with soft-touch ergonomic grip

Dimensions:

• Retracted Height: Approximately 15 inches (mounting bracket to wheel)

• Extended Height: Approximately 27 inches (mounting bracket to wheel)

• Clearance: 15.5 inches (mounting bracket to top of jack)

• Cylinder Diameter: 2.25 inches

• Wheel Diameter: 8 inches (spoked poly wheel)

• Pull Pin Diameter: 0.5 inches

Key Features:

• TruTurn 360 System: Patent-pending castering design for smooth maneuverability

• Speed Efficiency: 35% faster operation, with 20% more screw travel than standard jacks

• Corrosion Resistance: Sharkskin finish offers excellent protection in saltwater and harsh environments

• Lubrication: Grease fittings included for simple maintenance

• Swivel Mechanism: Spring-loaded plunger pin allows jack to swing up/down for use or travel

Additional Info:

• Construction: Heavy-gauge steel with tight-fit bushings to reduce drag

• Warranty: Limited 5-year warranty

• Weight: Approximately 20.5 lbs
